CPI 1.2 Meter Ku-Band RxO Antenna – Series 1122

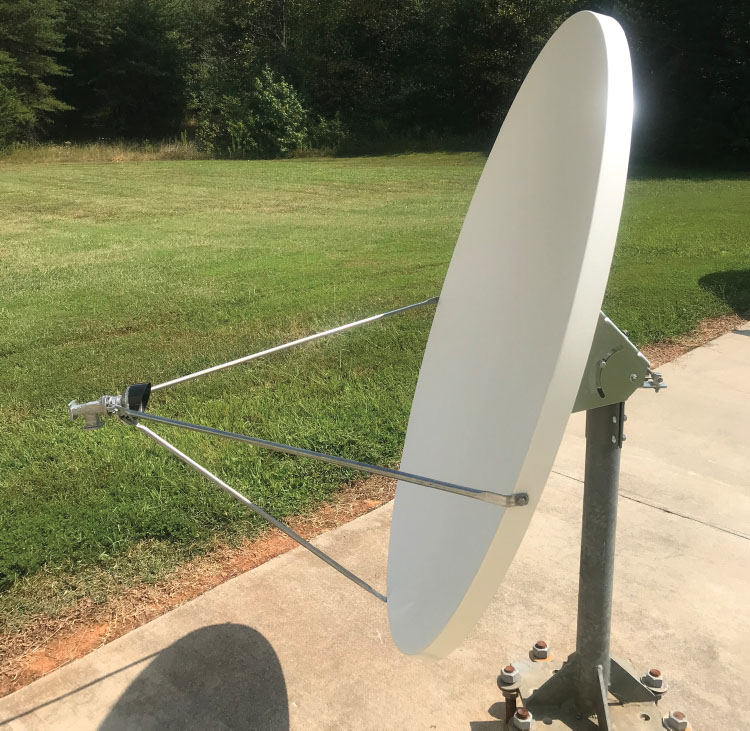

The 1.2m Ku-Band VSAT Antenna Series 1122 is ideally suited for demanding commercial applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation.

The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.0” OD Installation Mounts, and features fine Azimuth and Elevation Adjustments. The Az/El mount is constructed from heavy gauge pre-galvanized steel for strength and corrosion resistance. The Series 1122 RxO Antenna utilizes the same reflector and Az/El mount as the 1122 RxTx antenna, for future upgrades.

Contact to Learn More

local_phone Call to Order: +1 (877) 410-8101

Key Features

  • Transmit Quality Precision SMC Reflector
  • Fine Elevation and Azimuth Adjustments
  • Wide Band Ku RxO Feed
  • Linear Single or Dual Polarity
  • Durable and Rugged Construction for Ease of Shipping and Handling
  • Heavy Gauge Pre-Galvanized Steel Az/El Mount

Electrical

  • Antenna Size: 1.2 m (48 in.)
  • Operating Frequency (GHz): Receive = 10.70-12.75 GHz
  • Midband Gain (+/- .3dBi): Receive = 41.5 dBi
  • Antenna Noise Temperature:
    • 20° Elevation = 46° K
    • 30° Elevation = 43° K
  • Antenna Sidelobe Envelope: Per ITU-R S.580-6
  • Antenna Beamwidth: Receive = 1.5°
  • Polarization: Linear, Orthogonal
  • Cross-Pol Isolation: 30 dB on Axis

Feed Specifications – Dual Polarity Feed

  • Port-Port Isolation: 30 dB Typical
  • VSWR: 1.5:1 Max
  • Insertion Loss: 0.3 dB Max

Mechanical Performance

  • Reflector Material: Glass Fiber Reinforced Polyester SMC
  • Antenna Optics: Prime Focus, Offset, 0.6 F/D
  • Mount Type: Elevation over Azimuth
  • Elevation Adjustment Range: 10° to 90° Continuous Fine Adjustment
  • Azimuth Adjustment Range: 360° Continuous, +/- 10° Fine Adjustment
  • Mast Pipe Interface: 2.5 SCH Pipe (2.88” OD) or 3.00” OD (73 or 76mm)
  • Max RF Equipment Weight: Tier 1 Feed Support = 8 lb. (3.6 kg)

Environmental Performance

  • Wind Loading:
    • Operational = 45 mi/h (72 km/h)
    • Survival = 125 mi/h (200 km/h)
  • Temperature:
    • Operational = -40° to 140° F (-40° to 60° C)
    • Survival = -50° to 160° F (-46° to 71° C)
  • Rain:
    • Operational = 1/2”/h (13mm/h)
    • Survival = 2”/h
  • Ice: Survival = ½ inch (13mm) Radial Ice
  • Atmospheric Conditions: Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
  • Solar Radiation: 360 BTU/h/ft2 (1135 W/m2)
