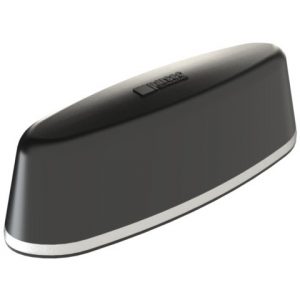

Mobile Mark LTMWG942 External Antenna

Dual Carrier MIMO Multi-Band Antenna

7-Cable: 4xLTE, 2xWiFi & 1xGNSS. Wider frequency, sub-6 and 5G ready.

Cable 1-4: 600-960 MHz, 2 dBi & 1710-3700 MHz, 5 dBi
Cable 5-6: 2.4-2.5 & 4.9-6.0 GHz, 5 dBi
Cable 7 (GNSS): 1561, 1575, & 1602 MHz, 5 dBi

The LTMG942 (4x LTE, 2x WiFi, GNSS) multiband antenna provides dual carrier MIMO Cellular LTE coverage as well as WiFi and GNSS coverage. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The antenna offers four separate Cellular elements, each covering 694-960 & 1710-3700 MHz. The elements can be paired so that there is 2x MIMO for each carrier. The LTMG942 (4x LTE, 2x WiFi, GNSS) also contains two WiFi elements for 2x MIMO coverage at 2.4-2.5 & 4.9-6.0 GHz. The LTMG942 is perfect for cellular routers with multiple embedded radios, such as the Peplink MAX HD2 or the Peplink Transit DUO.

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTM-942 series antennas take up significantly less space than multiple antennas.
